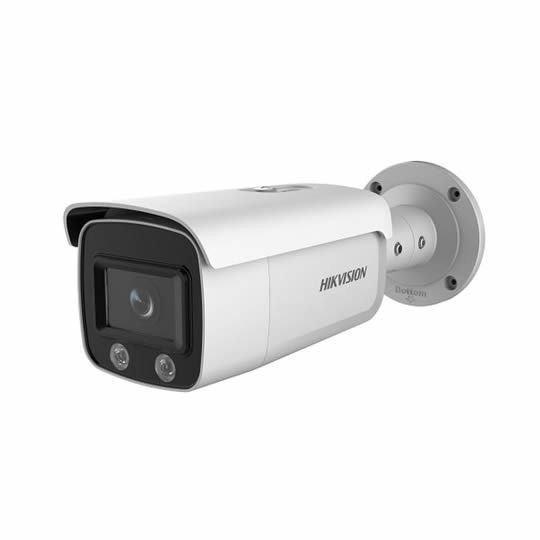

Haikon-Hikvision 4 MP ColorVu Fixed Network Bullet Kamera

Ürün Açıklaması

4 MP ColorVu Fixed Network Bullet Kamera

    • High quality imaging with 4 MP resolution
    • 24/7 full color imaging
    • Efficient H.265+ compression technology
    • Clear imaging against strong back light due to 120 dB true WDR technology
    • Water and dust resistant (IP67)
    • Robust structure design with full metal materials

  • Camera
  • Image Sensor1/1.8" Progressive Scan CMOS
  • Min. Illumination0.0014 @ (F1.0, AGC ON), 0 Lux with Light
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Wide Dynamic Range120 dB
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • DNR3D DNR
  • Lens
  • Lens2.8/4/6 mm
  • ApertureF1.0
  • FocusFixed
  • FOV2.8 mm, horizontal FOV: 109°, vertical FOV: 55°, diagonal FOV: 138°; 4 mm, horizontal FOV: 94°, vertical FOV:48°, diagonal FOV: 115°; 6 mm, horizontal FOV: 57°, vertical FOV: 31°, diagonal FOV:67°
  • Lens MountM16
  • Illuminator
  • White Light RangeWarm white LEDs (3000K), up to 30m
  • Video
  • Max. Resolution2688 × 1520
  • Main Stream50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720); 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
  • Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240); 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Video CompressionMain stream: H.265+/H.265/H.264+//H.264, sub-stream: H.265/H.264/MJPEG, third stream: H.265/H.264
  • H.264 TypeMain Profile/High Profile
  • H.265 TypeMain Profile
  • Video Bit Rate32 Kbps to 16 Mbps
  • Smart Feature-Set
  • Behavior AnalysisLine crossing detection, intrusion detection, object removal detection, unattended baggage detection
  • Region Of InterestSupport 1 fixed region for main stream and sub stream separately
  • Exception DetectionScene change detection
  • Face DetectionYes
  • Image
  • Image EnhancementBLC/3D DNR/HLC
  • Image SettingRotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • Day/Night SwitchDay/Night
  • Third Stream50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288); 60Hz: 30fps(1280 × 720, 640 × 360, 352 × 240)
  • Network
  • Network StorageSupport micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users, 3 levels: Administrator, Operator and User
  • ClientiVMS-4200, Hik-Connect, iVMS-4500, iVMS-5200
  • Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11; Plug-in free live view:Chrome 45.0+, Firefox 52.0+
  • Alarm TriggerMotion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
  • General
  • Firmware VersionV5.5.82
  • General FunctionOne-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • ResetYes
  • Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial power plug, PoE (802.3aF, class 3)
  • Power Consumption And Current12 VDC, 0.7 A, max. 9.5 W, PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 11 W
  • MaterialFront cover: metal, back cover: metal
  • DimensionsCamera: Φ 105 × 290.7 mm (Φ 4.1" × 11.4");With package: 385 × 190 × 180 mm (15.2" × 7.5" × 7.1")
  • WeightCamera: 1200 g (2.6 lb.); With package: 1800 g (4 lb.)
  • Interface ProtectionIP67
