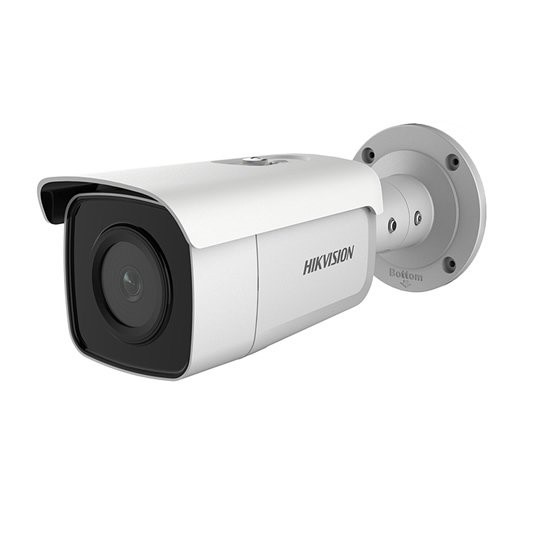

Haikon-Hikvision 6 MP EXIR Bullet Network Camera

Ürün Açıklaması

6 MP EXIR Bullet Network Camera


  • • Up to 6 megapixel high resolution



    • Max. 3072 × 2048@20fps





    • 2.8 mm/4 mm/6 mm fixed lens, optional



    • H.265, H.265+, H.264+, H.264



    • 120dB WDR



    • Powered by Darkfighter



    • 12 VDC & PoE (802.3af, class 3)



    • Support on-board storage, up to 128 GB



    • IP67



    • BLC/3D DNR/ROI/HLC



    • Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)



Camera
Image Sensor:   1/2.4" Progressive Scan CMOS
Signal System:   PAL/NTSC
Min. Illumination:   Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)
Shutter time:   1/3 s to 1/100,000 s
Slow shutter:   Support
Lens:   2.8 mm, horizontal FOV: 99°, vertical FOV: 61°, diagonal FOV: 128°
4 mm, horizontal FOV: 80°, vertical FOV: 51°, diagonal FOV: 101°
6 mm, horizontal FOV: 60°, vertical FOV: 38°
Lens Mount:   M16
Adjustment Range:   Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Day& Night:   IR Cut Filter
Wide Dynamic Range:   120 dB
Digital noise reduction:   3D DNR
Focus:   Fixed
Compression Standard
Video Compression:   H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate:   32Kbps~16Mbps
Triple Streams:   Yes
Max. Image Resolution:   3072 x 2048
Frame Rate:   50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub Stream:   50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream:   50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

Image Enhancement:   BLC/3D DNR/HLC
Image Settings:   Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
ROI:   Support 1 fixed region for main stream and sub stream separately
Day/Night Switch:   Day/Night/Auto/Schedule
Network
Network Storage:   microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols:   TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function:   One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility:   ONVIF (Profile S, Profile G), ISAPI
Interface
Communication Interface:   1 RJ45 10M / 100M Ethernet interface
On-board storage:   Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:   Yes
Smart Feature-set
Behavior Analysis:   Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection:   Cross a pre-defined virtual line
Intrusion Detection:   Enter and loiter in a pre-defined virtual region
Unattended Baggage:   Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal:   Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections:   Scene change detection
Recognition:   Face Detection
General
Operating Conditions:   -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply:   12 VDC ± 25%, 5.5 mm coaxial power plug ,PoE (802.3af, class 3)
Power Consumption:   -I5:
12 VDC, 0.5 A, max: 8 W
PoE: (802.3af, 36 VDC to 57 VDC), 0.4 A to 0.2 A, max: 9.5 W
-I8:
12 VDC, 1.0 A, max: 11 W
PoE: (802.3af, 36 VDC to 57 VDC), 0.4 A to 0.2 A, max: 12.9 W
Weather Proof:   IP67
IR Range:   -I5: up to 50 m; -I8: up to 80 m
Dimensions:   Camera: Φ105 × 289.5 mm (4.1″ × 11.4″)
Weight:   Camera: 1000 g (2.2 lb.)
With package: 1500 g (3.3 lb.)
